Freeborn PC-24-002 bead half round concave radius 1/8
$166.00
Stock In Stock
Brand: Freeborn Tools
Model: PC-24-002
Weight: 1.00lb
Dimensions: 6.00in x 6.00in x 8.00in
SKU: PC-24-002
Product Description
Outside diameter 4 1/2"
4"OD available by special order
Minor Diameter 3 1/2"
1 1/4" Bore
Versatile and easy-to-use. These 6 cutter sets are designed to perform the 3 functions shown. Freeborn's standard sets cut 1/4” wide
x 3/8” deep tongue and groove. Counterclockwise rotation with wood fed face down.
Produce perfect half rounds for 1/4" stock.
only. Mini-Pro is made to
run only on 3/4” spindle.
Material to 1-1/8”.
Part A and B are both run
flat in horizontal position
on shaper table. Part B is
run again on table saw to
cut groove (see diagram)
3 wing

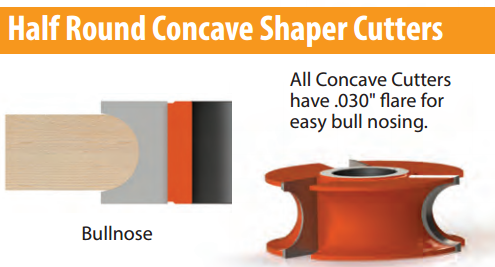

1/8" radius - 1/4" wide opening (.030" flare technically makes it slightly wider)
4" diameter
1-1/4" Bore
Carbide tipped
Made in USA by Freeborn Tools
